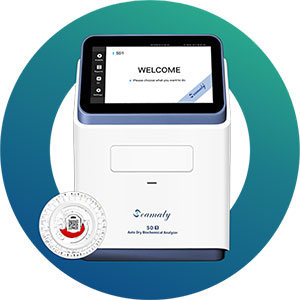

SD1 Chemistry Analyzer

Seamaty SD1 chemistry analyzer is a fully automated clinical chemistry system designed for the on-site testing, offering cost-effective solution for small and medium laboratory settings. Small size and easy operation, this chemistry analyzer allows healthcare practitioners to perform routine clinical chemistry tests with accurate results in 12 minutes. It uses patented single-use reagent discs which contain up to 18 chemistry tests.

Request for quotation

Simple 3-step operation

Step 1

Add sample

Step 2

Insert sample

Step 3

Read result

See how it works

Watch a short video demonstration of the Seamaty SD1 chemistry analyzer in action.

Specifications

Order code: A00128000EH0
Sample value: 90-120 ul
Barcode: QR code
Testing time: 12 minutes / sample
Temperature: 37℃±0.3℃
Resolution: 0.001Abs
Absorbance: 0-3.0Abs
Sample type: Anti-coagulation whole blood, serum, plasma
QC & Calibrate: IQC intelligent QC
Work condition: Temperature: 10-30℃  Humidity: < 30%-70%
Testing principle: Absorption spectroscopy. transmission turbidimetry
Testing method: End point, kinetic, fixed time, turbidmetry etc
Light source: 12V/20W, halogen lamp, lifespan is over 2500 hours
Power supply: AC 100V-240V, 50Hz/60Hz
Power: Max. 105W
Display: 7.0 inch touch screen
Storage: 500000 results
Printer: Built-in thermal printer
Connectors: 4 USB ports, 1 Lan port
Dimension (L*W*H): 25*20*30 cm
Weight: 4.2 Kg

Wide range of chemistry panels to increase your on-site diagnostic capabilities.

  • 14 General Chemistry Kit

  • 18 General Chemistry II Kit

  • 19 General Chemistry III Kit

  • 8 Renal Function Kit

  • 10 Liver Function Kit

  • 7 Electrolyte Kit

  • 6 Lipid Kit

  • 4 Cardiac Kit

  • 17 Conventional Chemistry Kit

  • 14 General Chemistry B Kit

  • 13 Livernal Function Kit

  • 10 Relyte Kit

  • 16 Health Check Kit

  • 9 Renal Function Plus Kit

  • 12 Liver Function Plus Kit

  • 8 Relyte Kit

  • 14 Chemistry CRP Kit

  • 5 CRP Kit
