Seamaty SD3 fully auto dry chemistry analyzer

SD3 Fully Automated Chemistry Analyzer

Based on microfluidics technology, Seamaty SD3 chemistry analyzer could provide an accurate test result with whole blood, serum, plasma in simple 4-steps operation. The system uses a new patented single-use reagent discs (fan-shaped reagent panels) offering a complete testing flexibility with the most cost-effective way.

Simple 4-step operation

Step 1

Add sample

Step 2

Place panel

Step 3

Insert carrier

Step 4

Read results

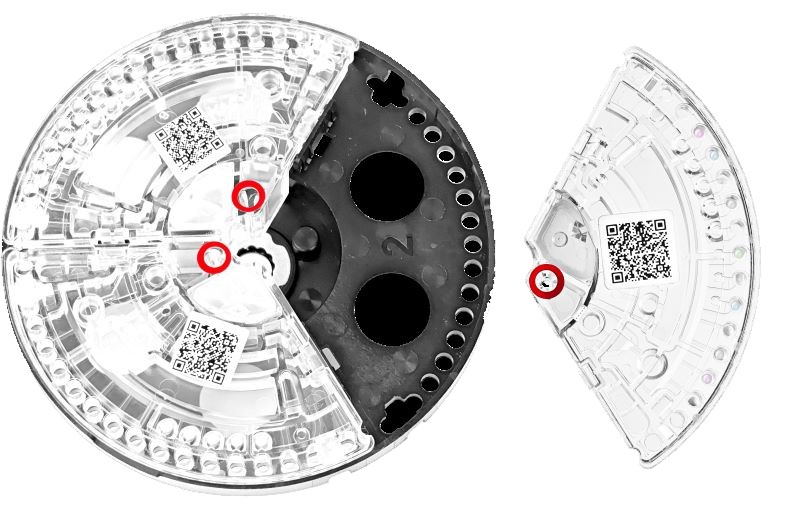

Fan-shaped reagent panels

Panel with built-in diluent for whole blood sample, report in 12 minutes; Panel without diluent for serum or plasma, report in 9 minutes; Up to 3 panels per run.

Easy to use

No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.

Accuracy result

Microfluidic technology with absorption photometry method guarantees; more accurate results than traditional dry chemistry; Independent cuvettes stop each assay from cross contamination.

Compact and portable

The analyzer is small and lightweight which will save your laboratory space and allow on-site patient testing.

Minimal maintenance

There are no easy-wearing parts such as liquid circuit, pump valve, and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.

Flexible combinations

Regular biochemistry, coagulation, electrolyte, lipid, cardiac, HbA1c as well as CRP; Multiple combinations are available.

See how it works

Watch a short video demonstration of the Seamaty SD3 chemistry analyzer in action.

Specifications

Order code: A00128000EH1
Sample value: 60-100 ul
Barcode: QR code
Testing time: 9-12 minutes / 3 samples
Temperature: 37℃±0.3℃
Resolution: 0.001Abs
Absorbance: 0-3.0Abs
Sample type: Anti-coagulation whole blood, serum, plasma
QC & Calibrate: IQC intelligent QC
Work condition: Temperature: 10-30℃  Humidity: < 30%-70%
Testing principle: Absorption spectroscopy. transmission turbidimetry
Testing method: End point, kinetic, fixed time, turbidmetry etc
Light source: 12V/20W, halogen lamp, lifespan is over 2500 hours
Power supply: AC 100V-240V, 50Hz/60Hz
Power: Max. 105W
Display: 7.0 inch touch screen
Storage: 500000 results
Printer: Built-in thermal printer
Connectors: 4 USB ports, 1 Lan port
Net Weight 4KG

Wide range of chemistry panels to increase your on-site diagnostic capabilities.

  • 14 General Chemistry Kit

  • 18 General Chemistry II Kit

  • 19 General Chemistry III Kit

  • 8 Renal Function Kit

  • 10 Liver Function Kit

  • 7 Electrolyte Kit

  • 6 Lipid Kit

  • 4 Cardiac Kit

  • 17 Conventional Chemistry Kit

  • 14 General Chemistry B Kit

  • 13 Livernal Function Kit

  • 10 Relyte Kit

  • 16 Health Check Kit

  • 9 Renal Function Plus Kit

  • 12 Liver Function Plus Kit

  • 8 Relyte Kit

  • 14 Chemistry CRP Kit

  • 5 CRP Kit
