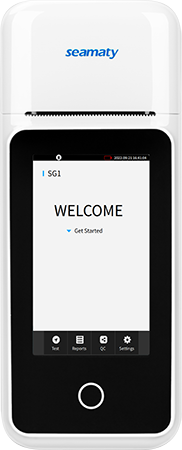

Seamaty SG1 Blood Gas & Electrolyte Analyzer
The Seamaty SG1 is a handheld blood gas analyzer that tests blood gas and electrolyte parameters, delivering laboratory-quality results within minutes. It features built-in high-altitude calibration to ensure accurate readings in any environment. This multifunctional device combines precision with exceptional portability, making it ideal for intensive care, emergency settings, and field use.

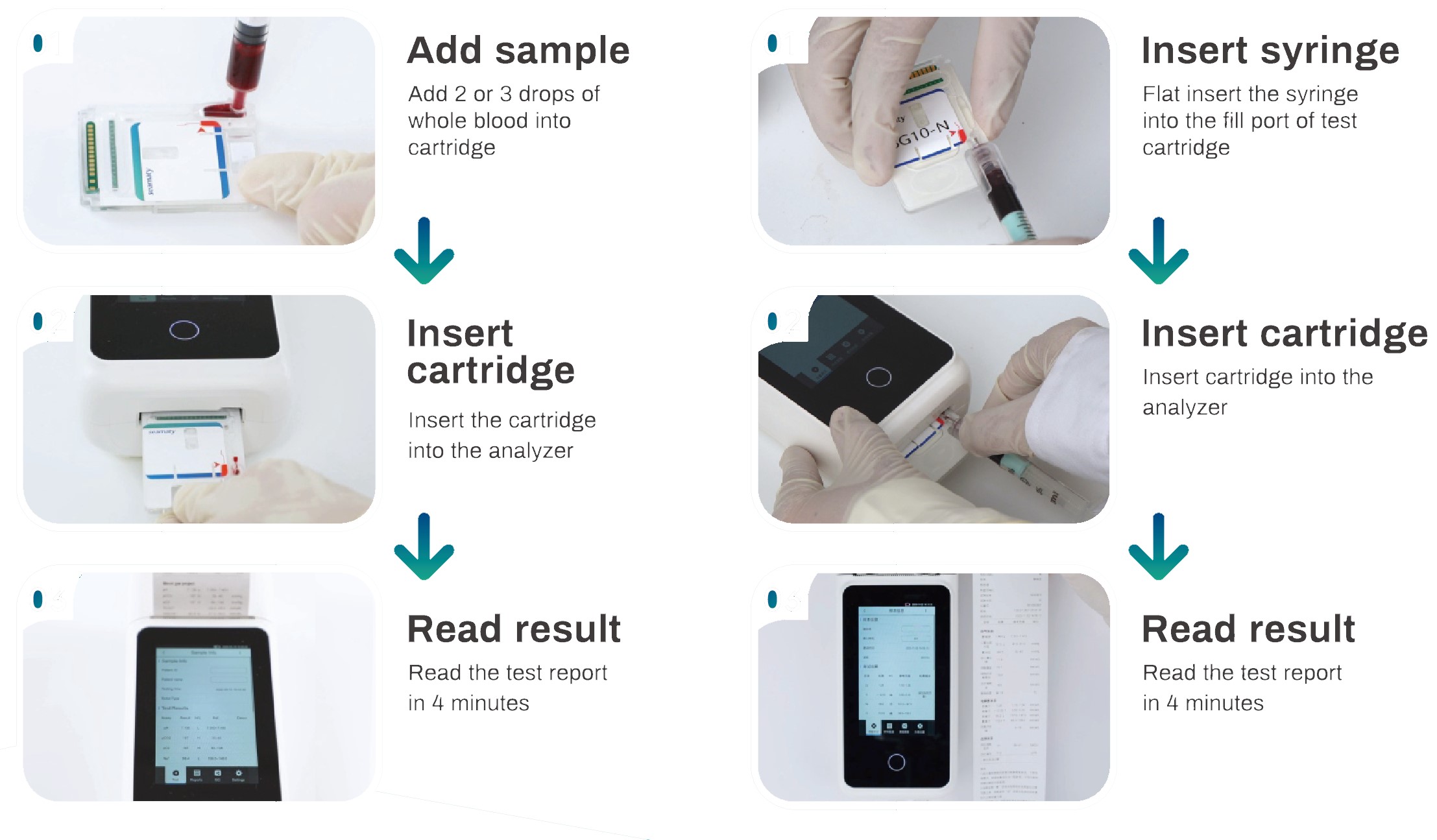

Simple 3-step operation
Step 1
Add 2 or 3 drops of whole blood into cartridge
Step 2
Insert the cartridge into the analyzer
Step 3
Read the test report in 4 minutes
Product Feature
Handheld portability
Lightweight with build-in battery allowing diagnose at the point of care, patient side, out in the field or exam room.
Fast results
Get accurate results in 4 minutes at the patient’s side to enable rapid decision-making, and optimize patient-care.
Easy to use
Testing can be performed in 3 simple steps at the patient’s side with only 2 or 3 drops of whole blood. Touch screen with user friendly interface helps the operator through the testing process easily.
Multi-parameter card
Single-use test card offer a broad menu of tests on a single, portable platform. Each test card has a unique combination of biosensors to suit a wide range of clinical needs.
See how it works
Watch a short video demonstration of the Seamaty SG1 blood gas & electrolyte analyzer in action.
Technical Specifications
| Sample | Arterial or venous whole blood |
| Sample volume | 100 μL |
| Bar code | QR code |
| QC & calibrate | Real time QC |
| Display | 4.3 IPS touch screen |
| Connectors | Type-c |
| Power | 5V 2A |
| Battery | 3.7V, 5000mAh |
| Printer | Built-in thermal printer |
| Weight | 600g |
| Operating temperature | Temperature: 5 – 32 °C Relative humidity≤85% |
Total 7 test cartridges, at most 10 parameters conveniently on one
| Item | Test Parameters |
|---|---|
| 3 Blood Gas Test (BG3) | pH、pO2、pCO2 |
| 4 Electrolyte Test (BE4) | K+、Na+、Cl-、Ca2+ |
| 5 Electrolyte Test (BE5) | pH、K+、Na+、Cl-、Ca2+ |
| 7 Blood Gas & Electrolyte Test (BG7) | pH、pO2、pCO2、K+、Na+、Ca2+、Cl- |
| 8 Blood Gas & Electrolyte Test (BG8) | pH、pO2、pCO2、K+、Na+、Cl-、Ca2+、Hct |
| 10 Blood Gas & Electrolyte Test (BG10) | pH、pO2、pCO2、K+、Na+、Cl-、Ca2+、Hct、Glu、Lac |
