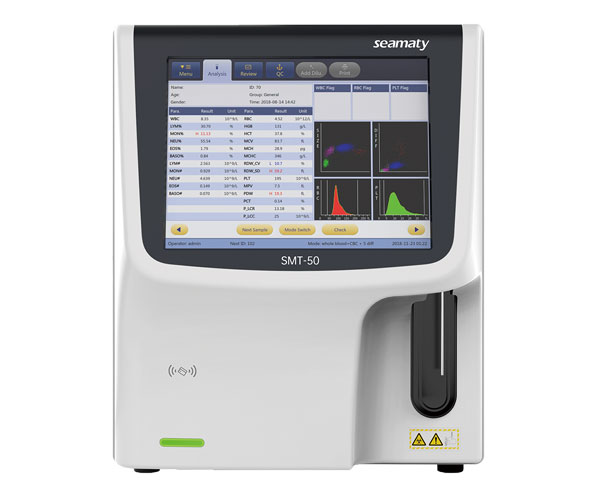

SMT-50 Hematology Analyzer

Maximum productivity in minimum footprint.

The Seamaty SMT-50 is a 5-part auto hematology analyzer, designed to help your low-volume laboratory enhance patient care through increased productivity with less costs. The SMT-50 hematology analyzer has built with the smallest footprints with a durable and less maintenance construction, uses only three reagents and delivers critical results with accuracy. Automated operational tasks promote ease of use, efficiency and uptime, freeing more time for patient care.

Request for quotation

Deliver reliable clinical results

The distinctive technology of laser scattering makes the analyzer simpler and more reliable.

Time-tested internal design

The analyzer adopts integrative, high precision and long life injector module and stable maintenance-free sampling module, allowing a higher durability of analyzer as well as reducing the cost in maintenance.

Reduce overall operating costs

Less reagents allow to save the testing cost and management cost. Built-in reagent cabinet can maximum hold 1L-DIFF lyse and 500ml-LH lyse in the same time to make your desktop neater with less operation.

See how it works

Specifications

Model No. SMT-50
Power Voltage: AC 100V~240V, 50/60Hz
Rated Power: 100~120VA
Sample Consume Sample consumed ≤20μL
Compatibility
  • Two modes of sampling: Whole blood, pre-diluted blood
  • Three modes of test: CBC, CBC+5Diff and CBC+5Diff+RRBC
  • External printer or thermal printer
  • 4 USB, 1 LAN support protocol HL7 and compatible with LIS system
  • Accompanying quality control material
Display 10.4″ colorful touchscreen
Efficient 60 samples/hour
Principle Flow cytometry and multi-angular laser scattering, Electric impedance method and Colorimetry
Parameters
  1. Reportable Parameters (25 items)
    WBC, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC
  2. Research Parameters (4 items)
    ALY%、ALY#、IG%、IG#
    2 histograms and 2 scattergrams
Reagents Build-in DIFF Lyse, LH Lyse, External Diluent, Probe Cleaner for maintenance
Flag System RBC, WBC, PLT abnormal sample and support customized test groups
Storage Max. 50,000 results
Quality Control 3 Level QC, L-J graph, X-B
Calibration Manual and Auto-calibration
Dimension 500mm(L)×320mm(W)×390mm(H)
Weight 25 Kg
Operational Environment Working Temperature: 10℃~35℃
Relative Humidity: 20%~85%
