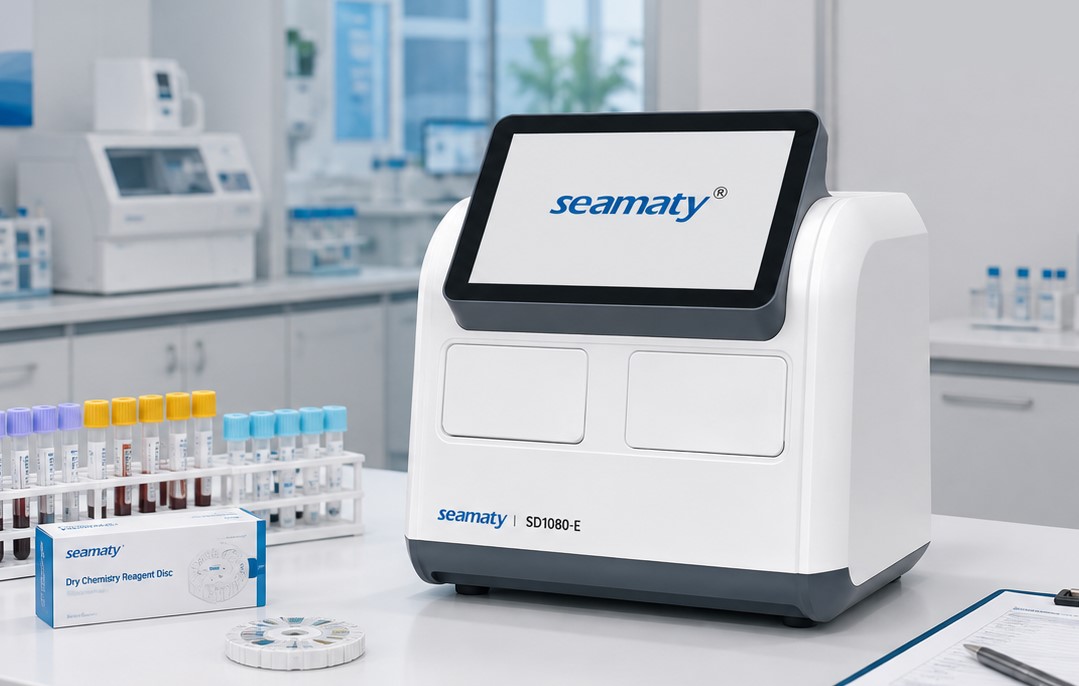

SD1080 Fully Automated Microfluidic Dry Chemistry Analyzer

Seamaty SD1080 Fully Automated Microfluidic Dry Biochemistry Analyzer utilizes advanced microfluidic technology to deliver laboratory level accurate and reliable results. Equipped with dual biochemical detection channels and new type reagent rotor, it enables the analyzer simultaneous detection of up to 6 samples, providing rapid results within 6 minutes to meet emergency testing needs. Additionally, it could efficiently handle point of care testing demands in peak testing periods or higher volume screenings.

Simple 4-step operation

Step 1

Add sample

Step 2

Place Rotor

Step 3

Insert Rotor

Step 4

Read results

Efficient

Two biochemistry test channels allow maximum 6 samples per run.

Flexible

Sector and arc reagent rotors provide tailored testing solutions from individual parameter test to combination test.

Easy to use

Fully automated, no pre-processing required. Just several easy steps to have test results in as fast as 6 minutes.

Accurate

New design reagent rotor with patent technology to solve the cross-contamination to ensure test results accurate and reliable.

Minimal sample volume

Minimum sample volume is 50μL,supporting whole blood,capillary blood, plasma, or serum.

Low Maintenance

No fluidics to reduce analyzer complexity and associated cost and maintenance.

See how it works

Watch a short video demonstration of the Seamaty SD1080 fully automated microfluidic dry chemistry analyzer in action.

Technical Specifications

Specifications

Product Model： SD1080 Fully Automated
Microfluidic Dry Chemistry Analyzer
Sample type： Whole blood, serum, plasma
Sample volume： Round Rotor 90-120 μl
Coagulation Rotor 300μl
Sector Rotor 50-70μl
Test Channel： Biochemistry I and
Biochemistry ll
Resolution： 0.001 Abs
Work condition： Temperature:10-30℃
Humidity: ≤85%
QC & Calibrate： Automatic and real-time
Rated Power： 120VA
Testing time： 9-12 minutes / 3 samples
Temperature： 37 ℃±0.3℃
Display： 9.0 inch 1024*600
Connectors： 4 USB interfaces,
1 LAN interfaces
Storage： MAX 500,000 results
Light source： Halogen tungsten lamp’s
shelt life is over 2500 hours
Testing Method： Endpoint, kinetic, two-point
Weight： 5.88Kg

Wide range of chemistry panels to increase your on-site diagnostic capabilities.

  • 14 General Chemistry Kit

  • 18 General Chemistry II Kit

  • 19 General Chemistry III Kit

  • 8 Renal Function Kit

  • 10 Liver Function Kit

  • 7 Electrolyte Kit

  • 5 Lipid Kit

  • 5 Cardiac Kit

  • 17 Conventional Chemistry Kit

  • 14 General Chemistry B Kit

  • 13 Livernal Function Kit

  • 10 Relyte Kit

  • 8 Renal Function Kit

  • 10 Liver Function Plus Kit

  • 5 Cardiac Kit

  • 8 Relyte Kit

  • 8 Liver Function Kit

  • 9 Comprehensive Kit
