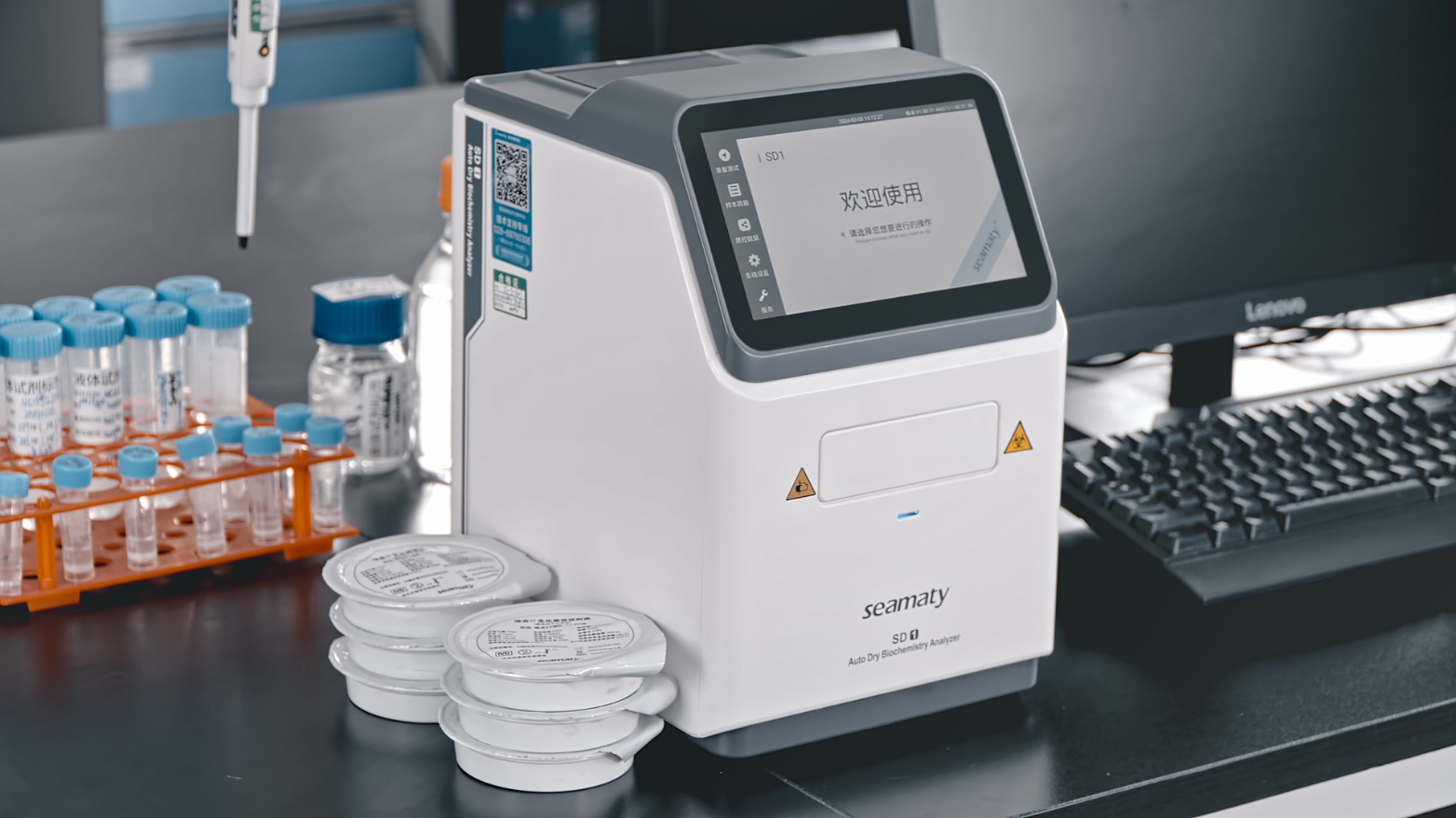

SD1 Auto Dry chemistry Analyzer

-POCT biochemical analyzer integrating conventional

A fully automated POC Auto Dry Biochemistry Analyzer called Seamaty SD1, With Just 3 to 4 drops (100ul) of whole blood to test up to 19 General and Special chemistry tests in less than 12 minutes. Seamaty SD1 works on absorption spectroscopy where a change in absorbance is detected by an absorption spectrum and an algorithm is used to calculate the end concentration of the sample in the reagent dry disc. The reagent disc consists of lyophilized reagent beads, diluent, and calibration details in the QR code. The reagent disc contains an intelligent internal quality control system IQC which continuously monitors the disc function to ensure reaction stability and optimal disc performance.

Step 1

Add Sample

Step 2

Insert Rotor

Step 3

Read Result

Features & Benefits

Easy to Use

No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone in your lab team could operate it.

Small Sample Value

Only 100μl sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.

Accuracy

The self-calibrating analyzer performs quality control checks on each sample. Accuracy and precision comparable to larger, more expensive laboratory analyzers.

Quick Result

It is real-time test and you could read the test report in 12 minutes, which greatly shortens the waiting time for patients.

Compact and Portable

The analyzer is small and lightweight which will save your laboratory space and allow on-site patient testing.

Minimal Maintenance

It is a fully-automated system that requires no special operating skills.

Automated and Smart

It is fully automated with features of online fault diagnosis, upgrading, to help you know the operation of the instrument in real time.

Easy Data Management

Memory capacity up to 500,000 records, accessible to the LIS laboratory information system to facilitate customer data management.

Product Video

Specification

Order code: A00128000EH0
Sample value: 90-120 ul
Barcode: QR code
Testing time: 12 minutes / sample
Temperature: 37℃±0.3℃
Resolution: 0.001Abs
Absorbance: 0-3.0Abs
Sample type: Anti-coagulation whole blood, serum, plasma
QC & Calibrate: IQC intelligent QC
Work condition: Temperature: 10-30℃  Humidity: < 30%-70%
Testing principle: Absorption spectroscopy. transmission turbidimetry
Testing method: End point, kinetic, fixed time, turbidmetry etc
Light source: 12V/20W, halogen lamp, lifespan is over 2500 hours
Power supply: AC 100V-240V, 50Hz/60Hz
Power: Max. 105W
Display: 7.0 inch touch screen
Storage: 500000 results
Printer: Built-in thermal printer
Connectors: 4 USB ports, 1 Lan port
Dimension (L*W*H): 25*20*30 cm
Weight: 4.2 Kg

Regent Discs

The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.
