Semi auto Chemistry Analyzer
SMT-70A

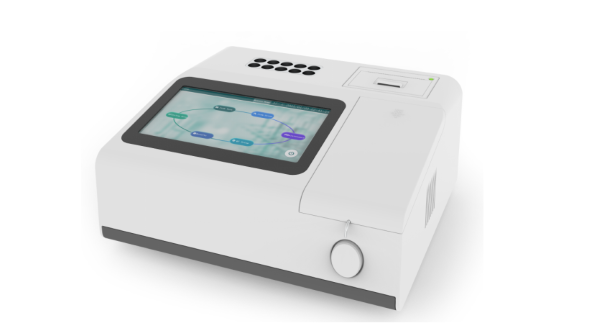

The SMT-70A is an economical semi-automatic biochemistry analyzer with incubator that provides a basic solution for clinical diagnosis.

– Compact size, large touch screen, integrated incubator.

– Simple structure with great flexibility.

Features & Benefits

7 Inch Touch Screen and Keypad

7-inch large touchscreen with a shortcut keypad, Linux operation system, user-friendly interface, easy operation.

Ultra-long shelf life

Original imported halogen lamp, automatic sleep function, ultra-long shelf life.

Small and portable

Portable design with simple structure and great flexibility.

Quick Result

Reaction Curve Real Time Display

Results are precise

Supports real-time QC.

Built-in printer

Thermal Printer, Auto&manual Print

Product Video

Test Items

Liver Function ALT, AST, ALP, GGT, TP, ALb, TBIL, DBIL,TBA, CHE Imunne Function lgA, lgG, lgM
Cardiac Function CK, CK-MB, LDH Renal Function BUN, CRE, UA, URE, CO2-CP, Y-GT
Lipids T-CHO, TG, HDL-C, LDL-C Others AMY, HGB, AMS etc.

Specification

Light source Halogen lamp, 6V 10W
Screen 7 inch TFT LCD, resolution: 1024*600
Test method End point, kinetic, two-point method
Absorbance range 0 ~ 4.000Abs
Wavelength 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm and one free positions
Data storage ＞300 items, ＞200,000 results
Size 280mmx240mmx130mm
Quality control rules Westguard multi-rule quality control
Net weight 3.5kg

Regent Discs

The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.
