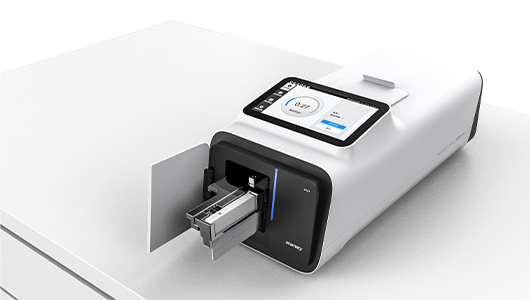

Vet Fully Automated Nucleic Acid Detection System
VQ1
Seamaty VQ1 Fully Automated Nucleic Acid Detection System integrated with real-time fluorescent quantitative PCR technology and patented microfluidic cartridge technology, delivers fast and accurate test results in several simple steps. The closed test cartridge contains freeze-dried reagents to eliminate the complicated liquid mix-and-match and transfers during the detection process, reducing the risk of contamination.
VQ1 is equipped with an independent heating and cooling module that achieves an extremely fast temperature change of 8°C per second, which shortens the entire qPCR reaction time. VQ1 provides an effective solution for disease surveillance in clinical diagnostic laboratories, the veterinary field, and the breeding industry.
Simple 4-step operation
Step 1
Prepare sample
Step 2
Add sample
Step 2
Insert cartridge
Step 2
Read result
Cost-effective and versatile
Freeze-drying reagents can be stored and transported at normal temperature. Wide range of available test menu expands in-house laboratory testing capabilities.
Easy to use
Requires no special operating skills with only a few simple steps to obtain a diagnostic result.
Accuracy result
Utilizes real-time fluorescent PCR with magnetic bead nucleic acid extraction technology providing a sensitivity up to 10 copies per reaction. -Built-in quality control system performs continuous quality control checks on every run.
Quick test
Quick turn-around time to get accurate test result in 40 minutes.
Compact and portable
Compact design saves laboratory space and allows for easy transportation anywhere.
Closed cartridge solution
Integrated the fully automated process of sample extraction, purification, system construction and amplification in one small closed cartridge to reduce the risk of contamination and operator error.
See how it works
Watch a short video demonstration of the Seamaty SMT- VQ1 Vet Fully Automated Nucleic Acid Detection System in action.
Specifications
| Sample Type | Nasopharyngeal swab, eye swab, oral swab, anal swab, pleural effusion etc. |
|---|---|
| Fluorescent Channel | 4 (FAM/HEX/ROX/CY5) |
| Heating/Cooling Rate | 8°C/S |
| Testing Principle | Real-time fluorescent quantitative PCR |
| Testing Time | 40mins/sample |
| Storage | 500,000 results |
| Cross Contamination | No |
| QC & Calibrate | Built-in intelligent quality control |
| Precision | Cv≤3% |
| Connectors | 4 USB ports, 1 RJ45 network port |
| Printer | Built-in thermal printer |
| Barcode | QR code |
| Voltage | AC220V+-22V 50Hz+-1Hz |
| Reated Power | 120VA |
| Weight | 8 Kg |
| Dimension (L*W*H) | 487mm*220mm*175mm |
